Lowara SVI Series

LOWARA

These are submersible centrifugal pumps.

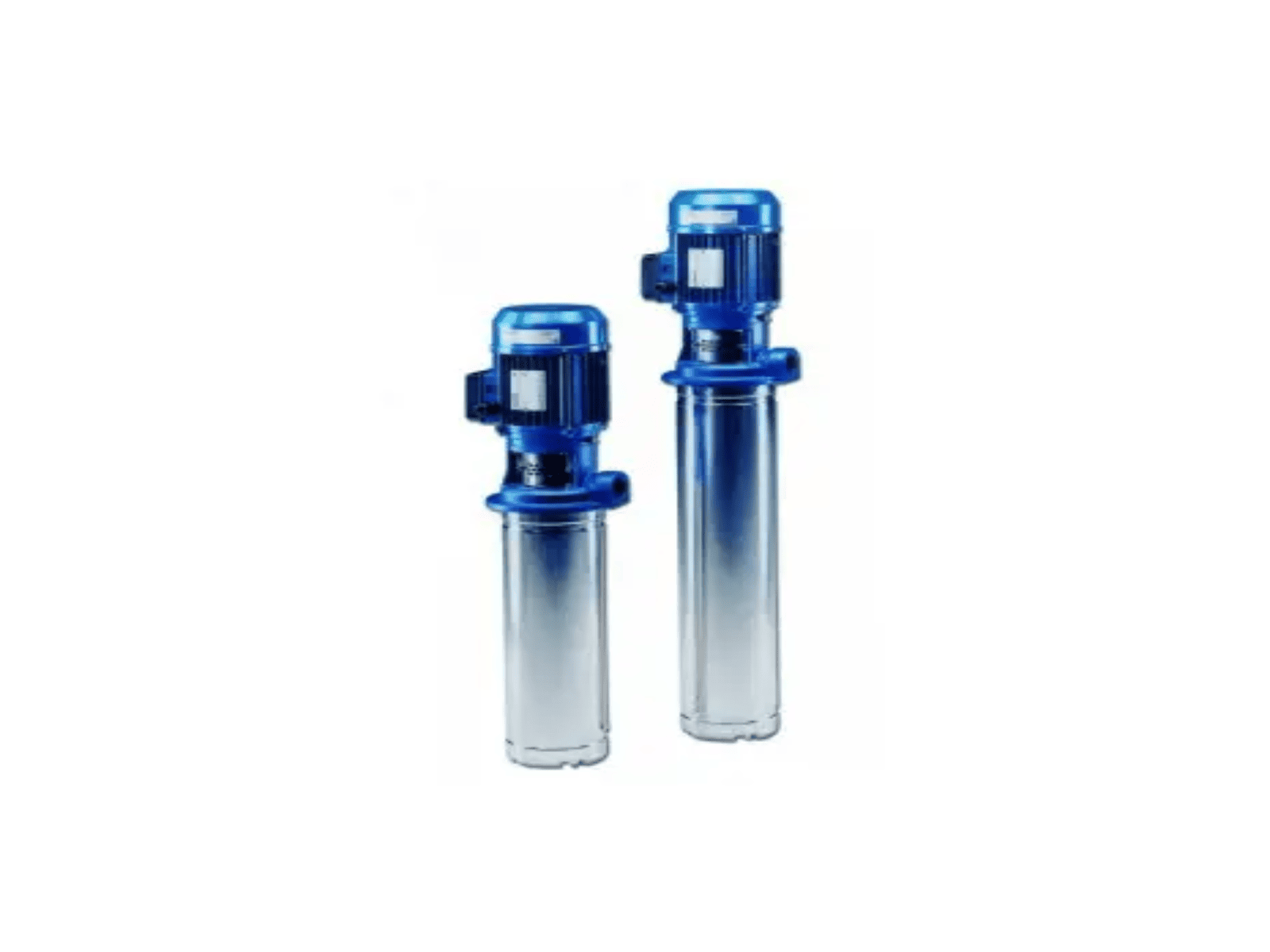

The e-SVI is an efficient, reliable, and high-performance pump resulting from the combination of an energy-saving vertical multi-stage pump and a high-efficiency IEC motor . Thanks to its submersible hydraulic housing, it offers an ideal solution for top-mounted applications .

  • Industry-leading performance range
    The e-SVI series, with flow rates up to 120 m³/h and model options from 1 to 92 , meets the requirements of a wide range of applications such as industrial processes, OEM systems and commercial building installations.
  • Submersible top tank solution
    The e-SVI is specifically designed for tank-top mounting . The pump unit is submerged in the liquid to be pumped. The length of the submerged pump section may vary depending on the application requirements.

Technical Information

  • Flow Rate Q: Max. 120 m³/h
  • Pressure Height H: Max. 240 m
  • Minimum Suction Level: 25 mm for SVI 2-16 series; 80 mm for SVI 33-92 series.
  • Liquid temperature: -10°C – +90°C (S and N versions) -10°C – +60°C (E version)
  • Operating pressure: Max. 25 bar

Features

  • Long life
  • High-efficiency motor
  • AISI 304-AISI 316 stainless steel option.
  • Wide range of mechanical seal options.
  • Ability to work continuously
  • Compatible with commercially available motors thanks to reduced axial pressure.
