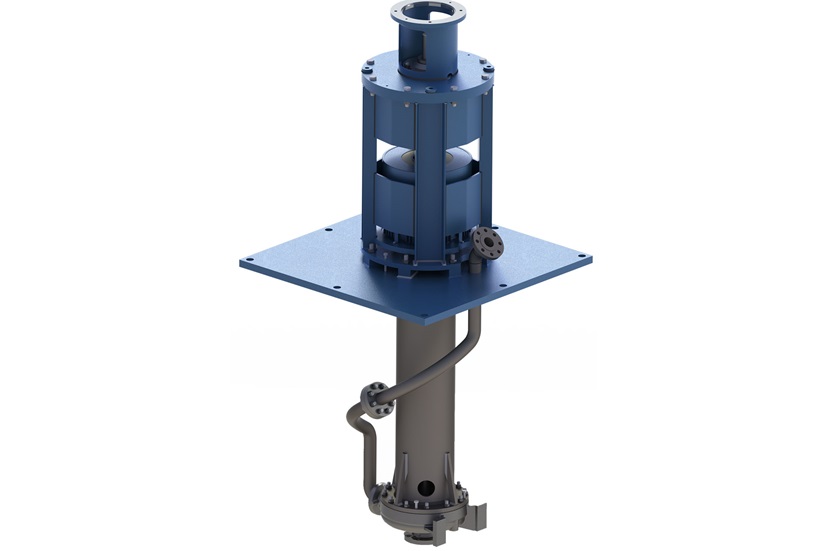

SULZER Ensival Moret VAP Heavy Duty Vertical Cantilever Sump Pump

SULZER

Ensival Moret VAP are heavy-duty vertical cantilever sump pumps specifically designed for transferring challenging fluids and slurry. Their robust mechanical construction, wide range of hydraulic and material options ensure maximum durability and reliability in the most demanding industrial applications.

Thanks to its cantilever (suspended) shaft design, it does not require intermediate bearings or mechanical seals. This reduces maintenance needs, increases reliability, and minimizes total cost of ownership. It offers a long service life in the transfer of corrosive, abrasive, high-temperature, and crystallization-prone fluids.

“Maximum durability for the toughest fluids: reliable operation, minimum maintenance, long service life”

Technical Information

  • Capacity: 3,500 m³/h
  • Head pressure: 150 m
  • Pressure: 20 bar
  • Temperature: 900 °C

Features

  • Maximum durability thanks to its heavy-duty, robust body construction.
  • Maximum application flexibility with a wide range of hydraulic and material options.
  • Thanks to its cantilever design, it does not require a mechanical seal.
  • Higher reliability with a design that does not include an intermediate bed.
  • Safe operation thanks to dry running capability.
  • Mill line independent push line design
  • The leak-proof bearing system provides protection against liquid and gas ingress.
  • Open, semi-open, or vortex wheel options.
  • Special design options for high-temperature applications.
  • Low maintenance requirements and easy servicing.

Related Applications

The Ensival Moret VAP pump series is suitable for the following demanding industrial applications:

  • Transfer of corrosive liquids
  • Abrasive slurry transfer
  • Liquids prone to crystallization
  • High-temperature process fluids
  • Molten metal transfer
  • Chemical and petrochemical plants
  • Metallurgy and mining applications
  • Energy and heavy industry processes
