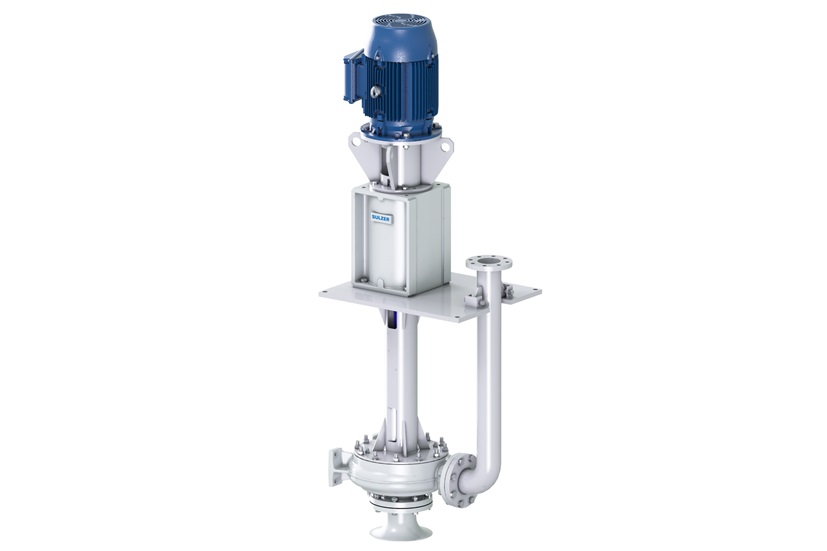

SULZER Ensival Moret VA Vertical Cantilever Sump Pump

SULZER

Ensival Moret VA are vertical cantilever sump pumps designed for transferring clean, dirty, and slurry-containing fluids. Thanks to a wide range of hydraulic and design options, they can easily adapt to different industrial applications and provide high performance under demanding operating conditions.

Thanks to its cantilever shaft design, it does not require mechanical seals or intermediate bearings. This structure reduces maintenance needs, increases operational reliability, and minimizes lifecycle costs.

Technical Information

  • Capacity: 3,500 m³/h
  • Head pressure: 100 m
  • Pressure: 20 bar
  • Temperature: 120 °C
  • Maximum speed: 3,000 rpm

Features

  • Simple, robust and reliable design.
  • Easy maintenance and low operating costs.
  • High application flexibility with a wide range of hydraulic options.
  • Thanks to its cantilever design, it does not require a mechanical seal.
  • High reliability thanks to a design that does not require an intermediate bed.
  • Dry running capability depending on the chosen hydraulic design.
  • Mill line independent push line design
  • The bed system must be protected against liquid and gas ingress.
  • Open, semi-open, closed, or vortex wheel options.

Related Applications

The Ensival Moret VA pump series is suitable for all industrial sump applications:

  • Industrial water transfer
  • Wastewater and process fluids
  • Corrosive and abrasive fluids
  • Hazardous chemical fluids
  • Liquids containing solid particles
  • Slurry applications with or without fiber.
  • Heavy slurry transfer
  • Chemical, metallurgical, energy, and general industrial applications.
